WS300 Platform Scales

Cost effective platform scale for general purpose weighing of any item up to 300 kg capacity.

See All Products
ws300 scale image
ws300 scale image

Overview

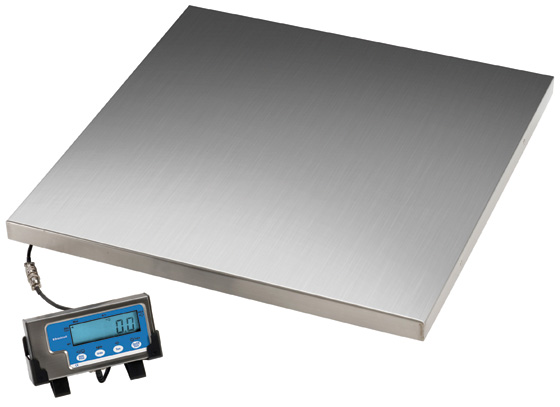

WS300 light capacity platform scales provide a low cost solution for general purpose weighing of any item up to 300 kg capacity.

These well designed low profile machines incorporate four full load bridge loadcells with self levelling, anti-slip feet to give a solid base in use.

The generous size weigh platforms are available in either WS300-50 (550 mm x 550 mm) or WS300-90 (900 mm x 550 mm). The WS 300-90 comes with a green rubber mat. WS300s have a tough, mild steel understructure and a stainless steel top.

Five metres of cable connects the base to the stainless steel indicator pod which features clear 17 mm high LCD display digits. A plastic display pod bracket is included to enable the indicator to be wall or bench mounted.

Typical Applications: Livestock, Shipping, Warehouse, Industrial

Specifications

ws300 transparent scale image
Scale Dimensions
165 mm x 30 mm x 81 mm / 6.5" x 1.2" x 3.2"
Product Code
WS300-55 (300kg) – 816965003754
WS300-90 (300kg) – 816965003761
Display
Five digit 17 mm digits with seven segment LCD display
Capacity
300 kg x 50 g
Platform Dimensions
WS300-55: 550 mm x 550 mm x 60 mm
WS300-90: 900 mm x 550 mm x 60 mm

Product Differentiators

  • Stainless steel platform top and display pod
  • Powered by 4 x 1.5 volt AAA batteries (not included) or 6 volt UK/EU power adaptor (included)
  • RS-232 output standard

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure
