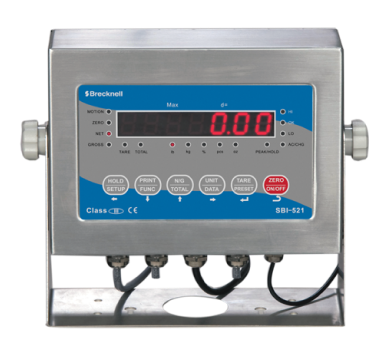

SBI-521

The Brecknell SBI-521 digital indicator is housed in a heavy duty stainless steel enclosure…

See All Products

Overview

The legal-for-trade SBI 521 Indicators is a simple to operate weight indicator designed for use in a wide range of applications (weighing, counting, check weighing, percentage weighing, accumulation). These indicators are housed in a robust IP65 stainless steel housing and is supplied complete with a mounting bracket, that is ideal for wall or bench mounting.

The SBI 521 Indicator ensures accurate readings and can connect to any bench or floor scale with a maximum of up to eight 350 ohm load cells.
AC or battery powered these indicators are ideal for areas where continuous power may be hard to find.

The SBI 521 indicators come stranded with RS-232/485 bi-directional comm’s ports for data capture with a printer or PC.

Typical Applications: Industrial, Livestock, Shipping, Warehouse

Approvals:

Specifications

Indicator Dimensions
3.5″ x 10.5″ x 8.5″ / 89 mm x 267 mm x 216 mm
Product Code

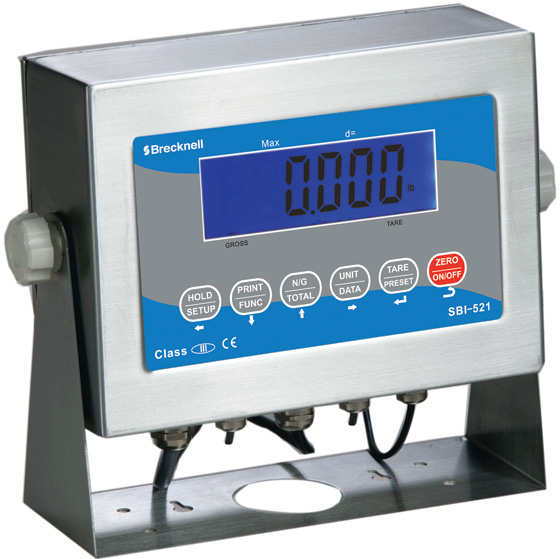

SBI-521 LCD (NTEP approved) – AWT05-506154

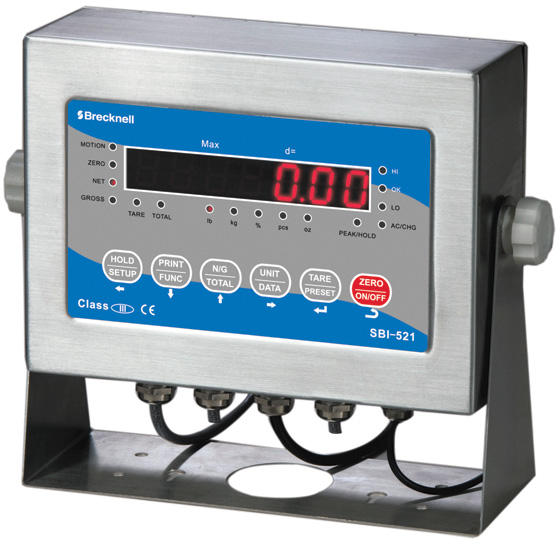

SBI-521 LED (NTEP approved) – AWT05-506155
Display
Backlit LCD or LED display
Compliance
CEC, FCC compliant, IP65, Measurement Canada AM-5923, NTEP CC# 11-119, Prop 65, UL/CUL power adapter

Product Differentiators

  • Hold, counting, totalizing, checkweighing and percentage functions

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure
User Manual
