C3235

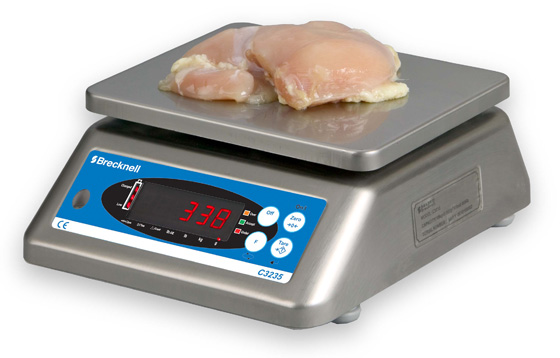

The Brecknell C3235 is a watertight checkweighing scale for the rapid indication of over, under or acceptable weight in a washdown environment.

See All Products

Overview

The C3235 is a waterproof NSF for the rapid indication of the weight and over, under, accept tolerances in washdown environments.

Available in a choice of 6 lb / 3 kg, 12 lb / 6 kg and 30 lb / 15 kg capacities with resolution of 1 part in 6000 the C3235 is ideal for portion controlling, food processing and catering kitchens applications.

Simple to operate the keyboard has four buttons – off, on/zero, push button tare and function. The function key gives access to the check weigher set up for targets and tolerances (LED and audible alarm), unit switching and count modes.

Typical Applications: Catering, Food Industry, Portion Control (NSF listed), Waterproof

Approvals:

Specifications

Scale Dimensions
9.25″ x 11″ x 4″ / 235 mm x 285 mm x 110 mm
Product Code
C3235 (3kg / 6lb) – 816965002535
C3235 (6kg / 12lb) – 816965002542
C3235 (15kg / 30lb) – 816965002559
Platform Dimensions
7.5″ x 9″ x 0.5″ / 190 mm x 229 mm x 13 mm
Capacity
6 lb x 0.02 oz / 3 kg x 0.5 g
12 lb x 0.05 oz / 6 kg x 1 g
30 lb x 0.1 oz / 15 kg x 2 g
Display
6 digit, 0.5" (13 mm) high 7-segment red LED display

Product Differentiators

  • ±2 divisions at full load
  • AC power with internal rechargeable battery
  • IP66 Stainless steel watertight enclosure
  • NSF listed

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure Folleto de Producto
User Manual
